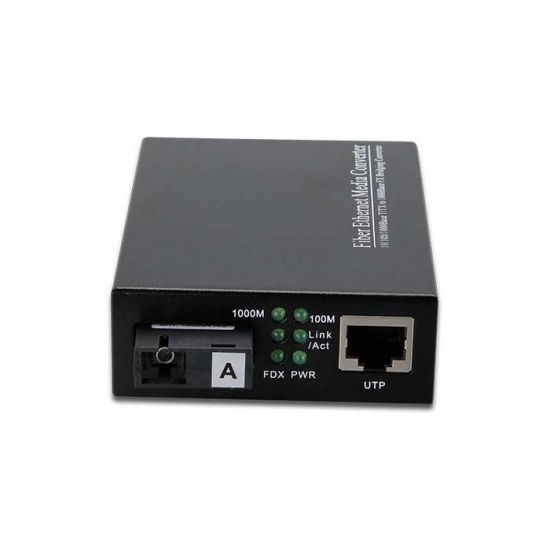

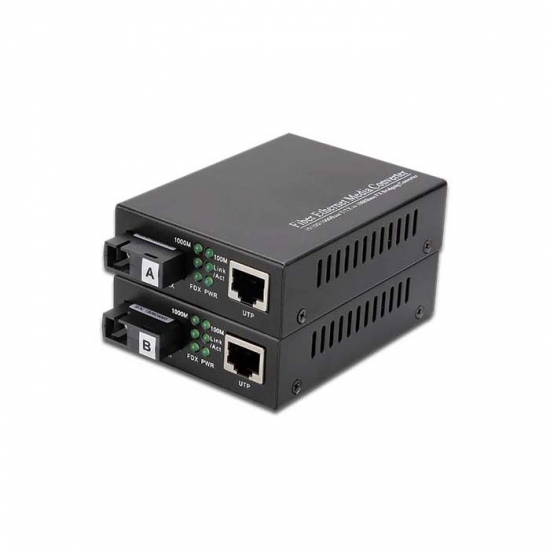

10/100M 百兆双纤光纤收发器

百兆收发器

10/100M 百兆双纤光纤收发器



  • 传输速率:

    100M
  • 传输距离:

    0.5~120KM
  • 接口:

    SC
  • 产品产地:

    中国
  • 发货港口:

    深圳
  • 交付周期:

    请与销售确认
  • 品牌:

    ETU-LINK
  • 产品详情

  • 内置高效交换内核,广播过滤功能,流量控制,CRC错误校验
  • 支持生成树进行容错网络
  • 支持10/100Mbps或10/100/1000Mbps全/半双工自适应传输和自动协商,升级方便
  • 最大传输距离可达120km。
  • 外接电源或内置电源
  • 单机型可安装到14slot 2U Rack; 卡式插入 16slot Rack
  • 热插拔,可靠性高
  • 缓存容量:1M Bits
  • 内置MAC地址缓冲空间:1K



Fiber Media Converter

Overview
The unmanaged fiber media converter is designed with a switch controller and
buffer memory that connects two types segments operation smoothly. The converter
can be installed into 2U 19” converter rack-mount chassis for centralized power.
Data Rate: 10/100Mbps, 10/100/1000Mbps.
Fiber Type: 550M/2KM for Multimode;20/40/60/80/120KM for Single mode.
Optic Connector: SC(default)/ST/FC/LC

 Features
1. Built-in efficient exchange kernel,Broadcasting filtration function,flow control,
CRC error check.
2. Supports SPANNING TREE to conduct fault-tolerant Network.
3. Supports 10/100Mbps or 10/100/1000Mbps full/half duplex self-adaptive
transmission and auto-negotiations, easy upgrades.
4. Max.transmission distance can be 120km.
5. External power supply or Built-in power supply.
6. Standalone type can be installed into 14slot 2U Rack; Card type into 16slot Rack.
7. Hot-swap,High reliability.
8. Cache capacity: 1M Bits.
9. Built-in MAC address buffer space: 1K.

Standard Protocol
IEEE802.3 Ethernet standard
IEEE802.3u fast Ethernet standard
IEEE802.3d Spanning Tree standard
