传输速率:
155M传输距离:
20KM接口:
SC光纤类型:
单模DDM:
带DDM产品产地:
中国发货港口:
深圳交付周期:
请联系业务员确认交期品牌:
ETU-Link
型号:E1B35 (53) 03-5SC20

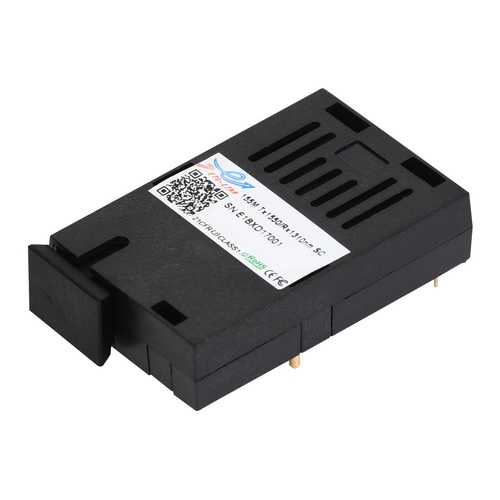

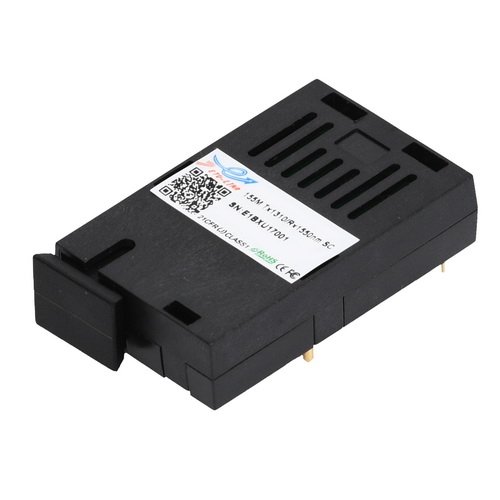

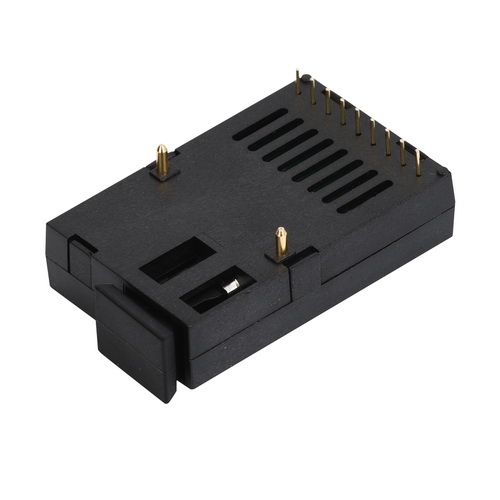

描述:155M 1X9 SC 单纤光模块 20KM
Tx1310nm/Rx1550nm (Tx1550/Rx1310nm)
Features
Ø SC/FC/ST Single Fiber Transceiver
Ø Industry Standard 1x9 Footprint
Ø Multi-rate of 1M~155Mbps operation
Ø Single 3.3/5V Power Supply
Ø Uncooled 1310nm FP/ 1550nm FP laser transmitter
Ø LVTTL/TTL Signal Detection Output
Ø Wave Solderable and Aqueous Washable
Ø Class 1 laser safety certified
Ø ROHS Compliant
Applications
Ø SONET/SDH/PDH Equipment Interconnect
Absolute Maximum Ratings |
|||||
Parameter |
Symbol |
Min. |
Max. |
Units |
Note |
Storage Temperature |
Ts |
-40 |
85 |
℃ |
|
Power Supply Voltage |
Vcc |
0 |
4.5 |
V |
E1B35 (53) 03-3SC20 |
0 |
6 |
V |
E1B35 (53) 03-5SC20 |
||
Soldering Temperature |
|
|
260 |
℃ |
10 seconds on leads only |
Input Voltage |
Vin |
GND |
Vcc |
V |
|
Output Current |
Iout |
0 |
30 |
mA |
|
